BOLT X
High-Speed Cinebot with Extended Arm Reach for Large-Scale Motion Control

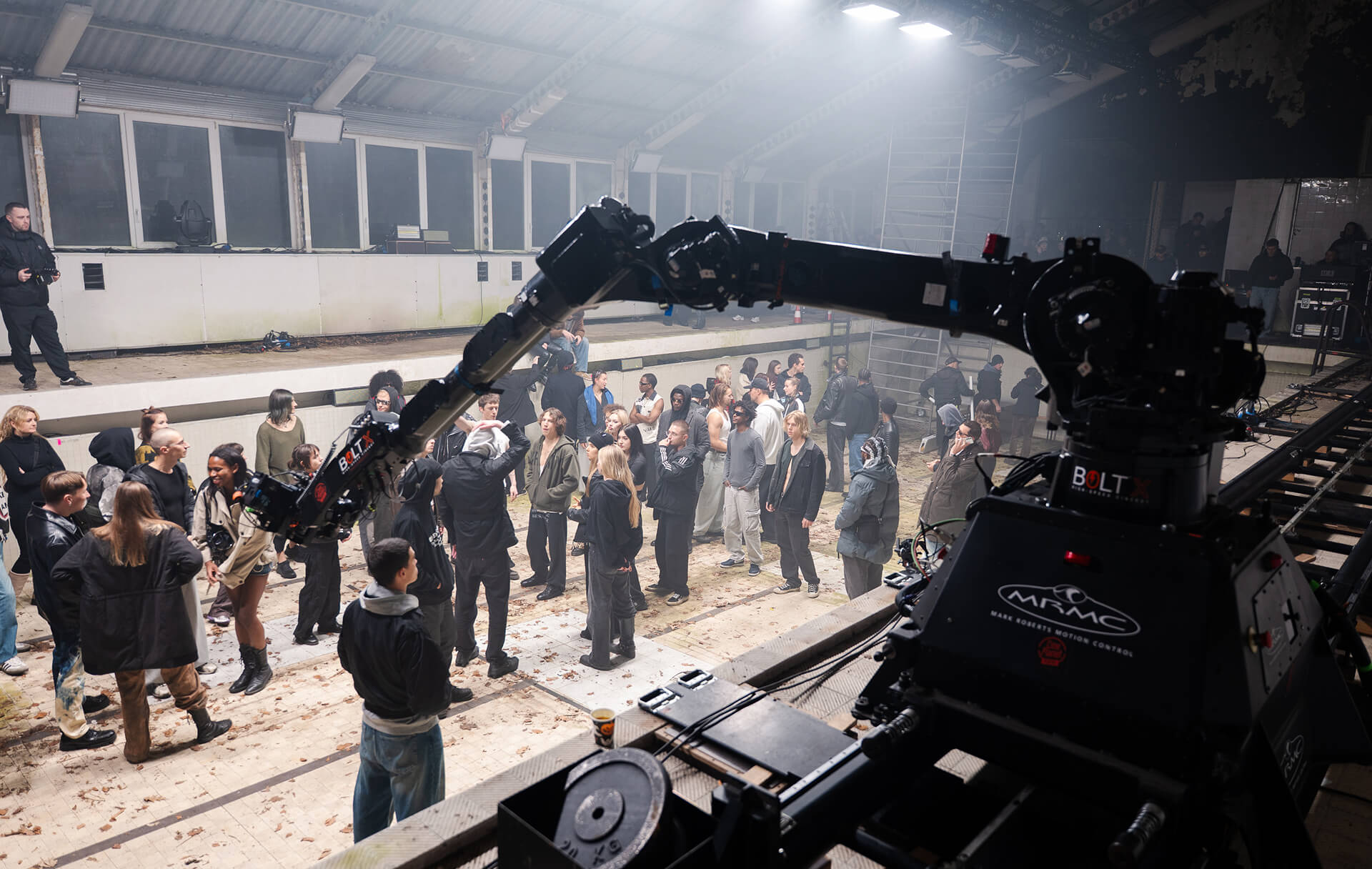

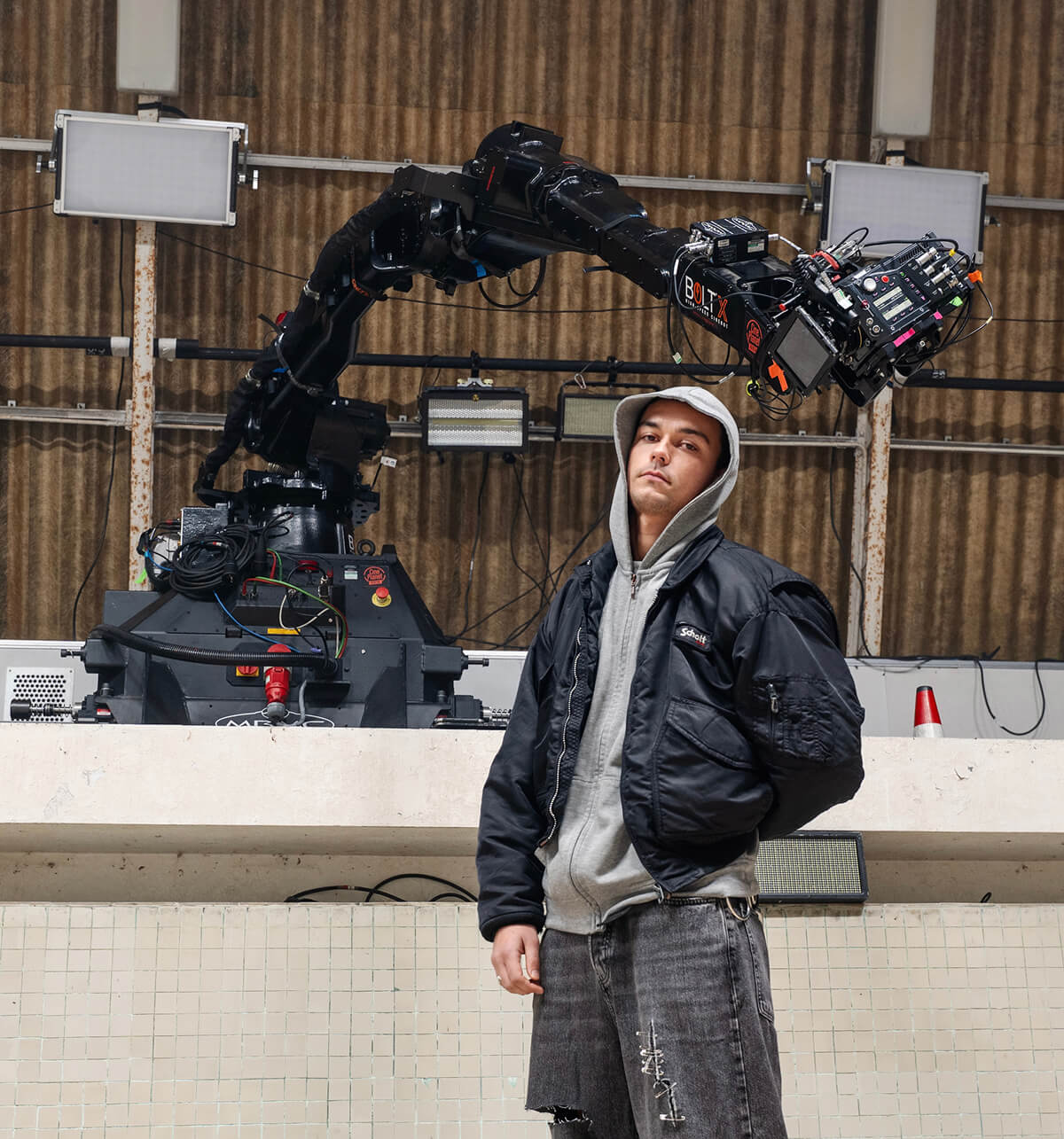

Bolt X is a high-speed cinebot designed for camera payloads up to 20 kg, featuring the longest arm reach in the MRMC high-speed range, up to 3.2 m. Built for large-scale, spatial camera movement, it enables greater flexibility in shot design, making it ideal for studio environments and on-location productions requiring extended reach.
Key Advantages
-
Extended Arm Reach for Greater Shot Flexibility
With a 3.2 m reach, Bolt X offers the largest working envelope in the MRMC high-speed range, allowing for more spatial and dynamic camera movement, especially in complex or multi-axis shots.
-
Large Vertical Range and Negative Positioning
A maximum height of 4.3 m and the ability to operate down to – 1.3 m enable greater vertical freedom, including below-ground or low-angle camera positioning.
-
High-Speed Motion Control Performance
With speeds of up to 14 m/s on track, Bolt X delivers fast and controlled camera movement across a significantly larger working area.
-
Precision and Repeatability
Ensures smooth, repeatable camera moves with frame-accurate synchronisation, making it suitable for VFX, tabletop, and multi-pass shooting.
-
Integrated Production Workflow
Designed for professional environments, featuring integrated camera cabling, precise lens control, and compatibility with timecode, DMX lighting, and advanced VFX workflows.
